Boxer Radio Controller Mode2 4in1 ELRS วิทยุ รีโหมด RC โดรน FPV Racing Drone Hall Gimbals V4 EDGETX

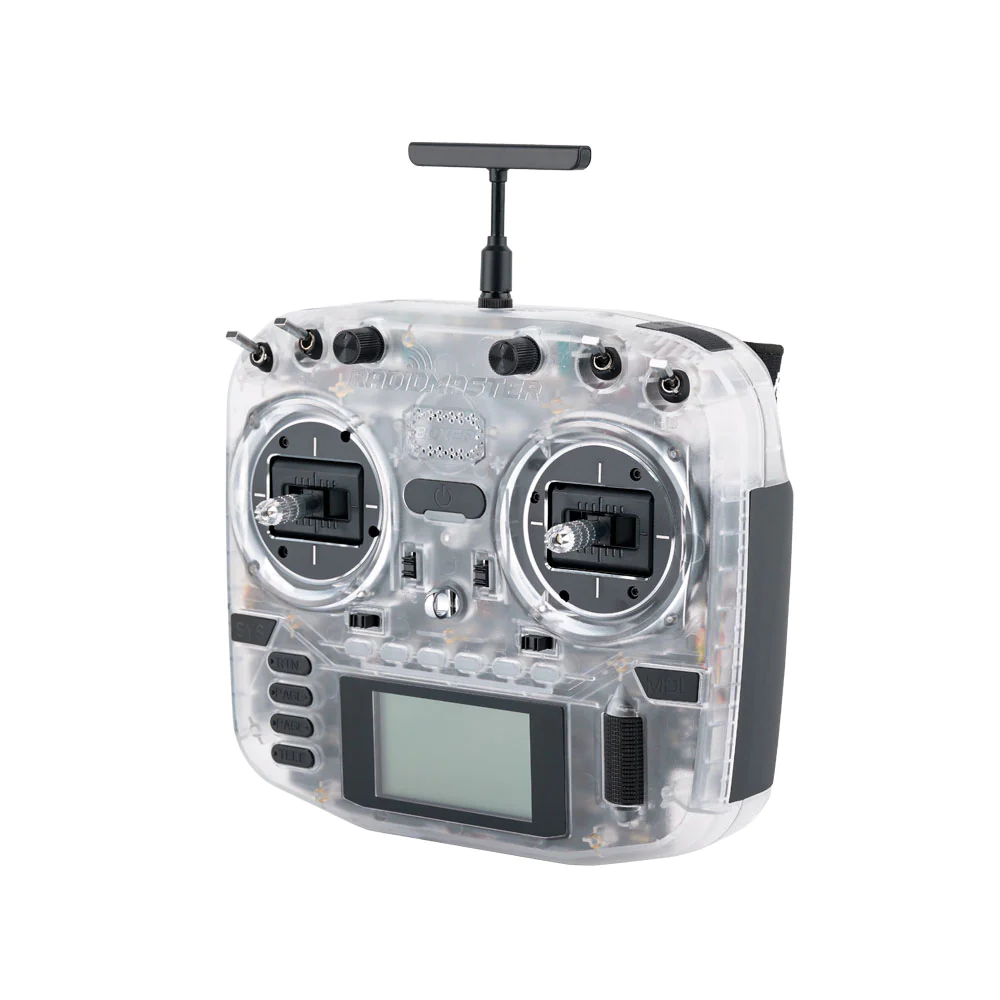

Our popular Boxer radio is now available in a Transparent Edition—an electrifying fusion of style and performance that is sure to set the RC community ablaze! Unleash the perfect balance of sleek design and high durability, all wrapped up in a premium transparent package. Prepare to be mesmerized with the bonus White LED kit included allowing you to customize the look of your radio even further! We have even included a bonus neck strap to complete the set with style and comfort!

Launch Video

Feature

• Special transparent version radio with white Gimbal LED set and RadioMaster Neck Strap included
• You can DIY your personalized and unique radio anytime
• Available with built-in ExpressLRS RF modules
• Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
• Preinstalled EdgeTX firmware
• Internal ELRS module capable of 1,000Hz refresh rate
• Adjustable ELRS RF output (30dBm max FCC or 20dBm Max EU LBT)
• QC3.0 fast charging support 2.0A MAX

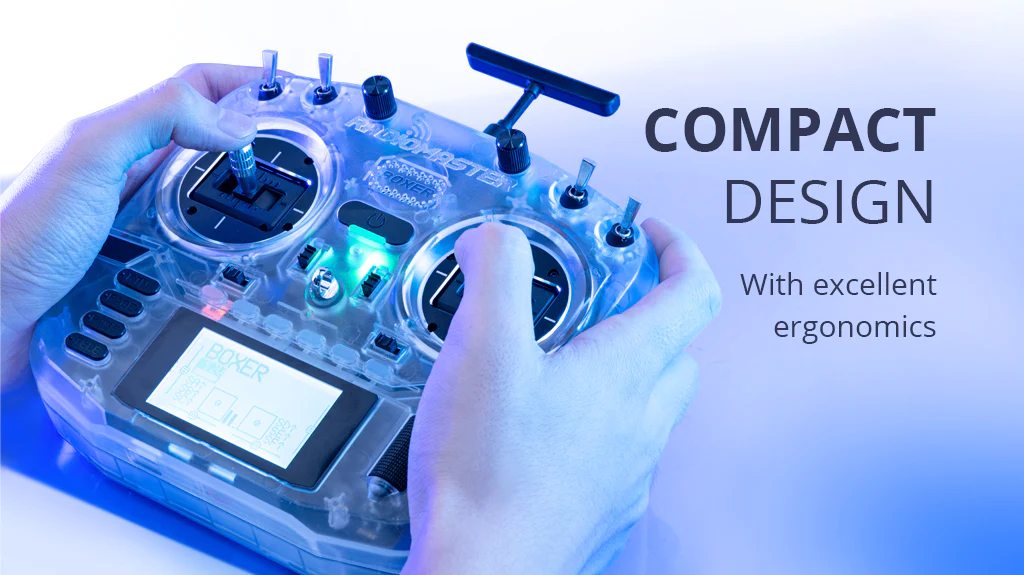

• Compact design with excellent ergonomics

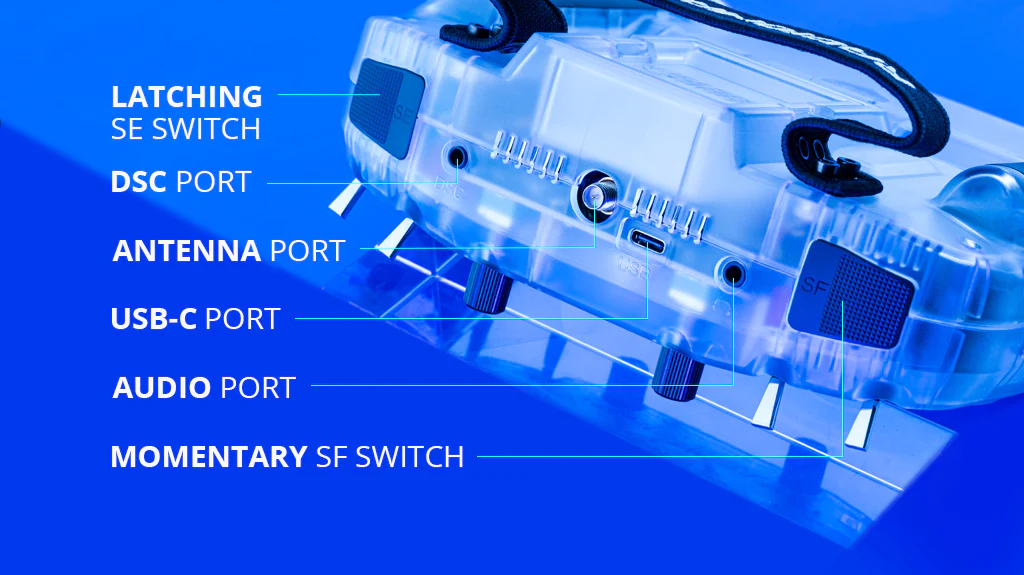

• New low-profile latching SE switch and momentary SF switch

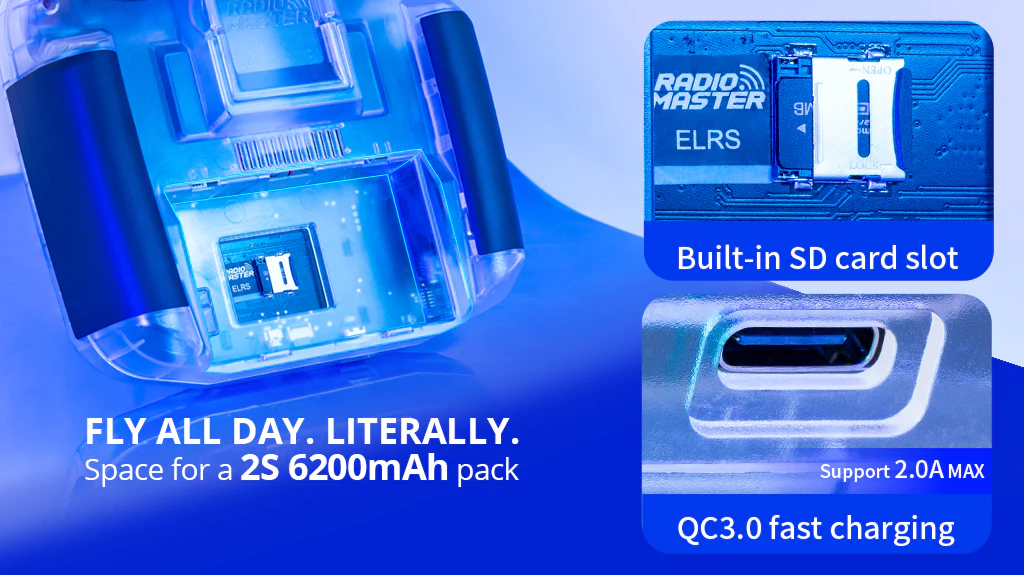

• Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
• Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
• Standard JR module compartment
• Internal module cooling fan built in (ELRS version)
• RadioMaster standardized button layout
• Versatile 6-position switch for flight mode access

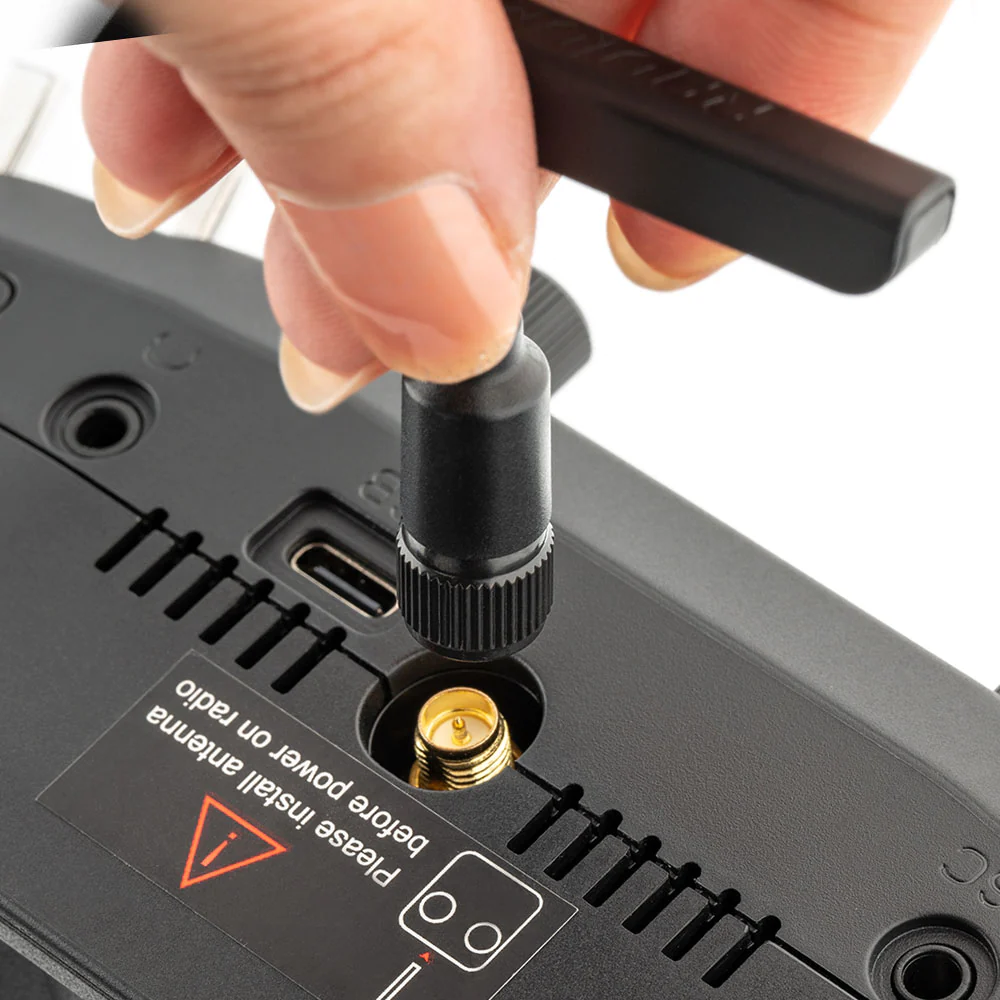

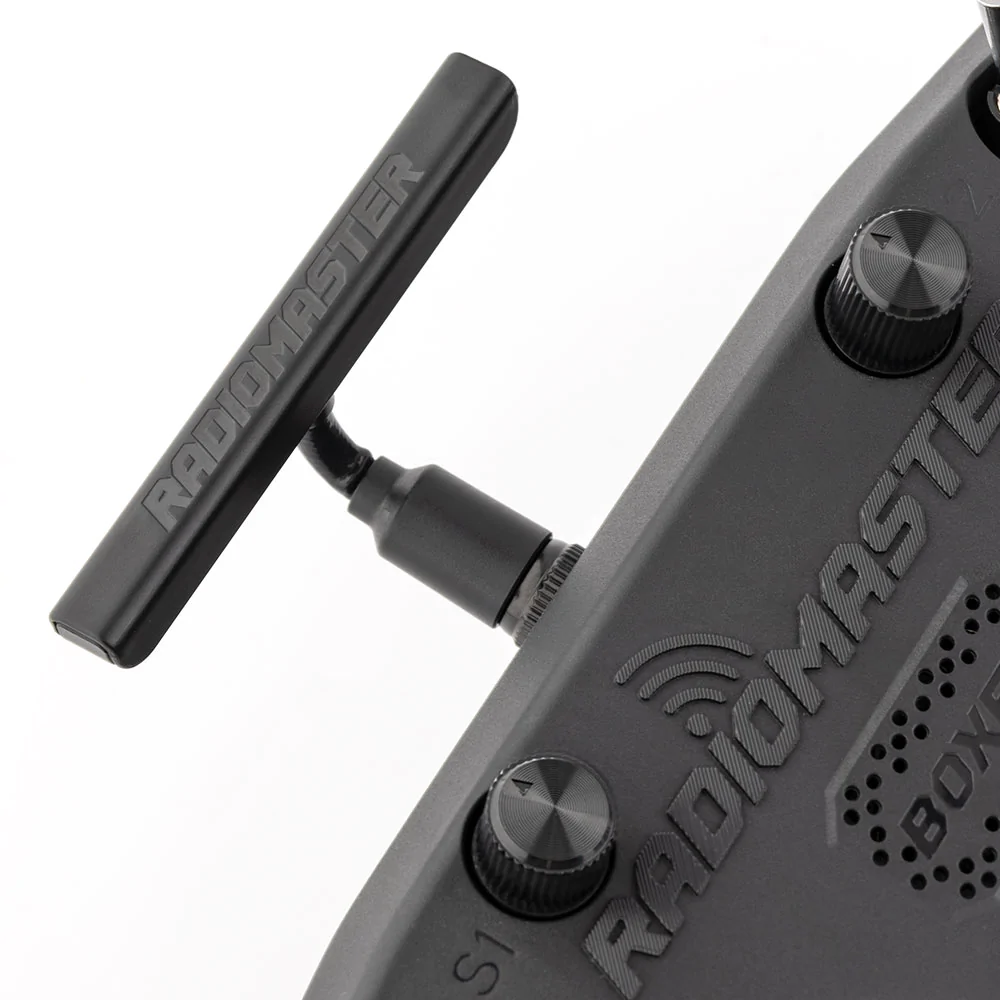

• Adjustable and Removable T-shape Antenna
• Industry first fabric handle for improved portability
• Changeable, ergonomic grips

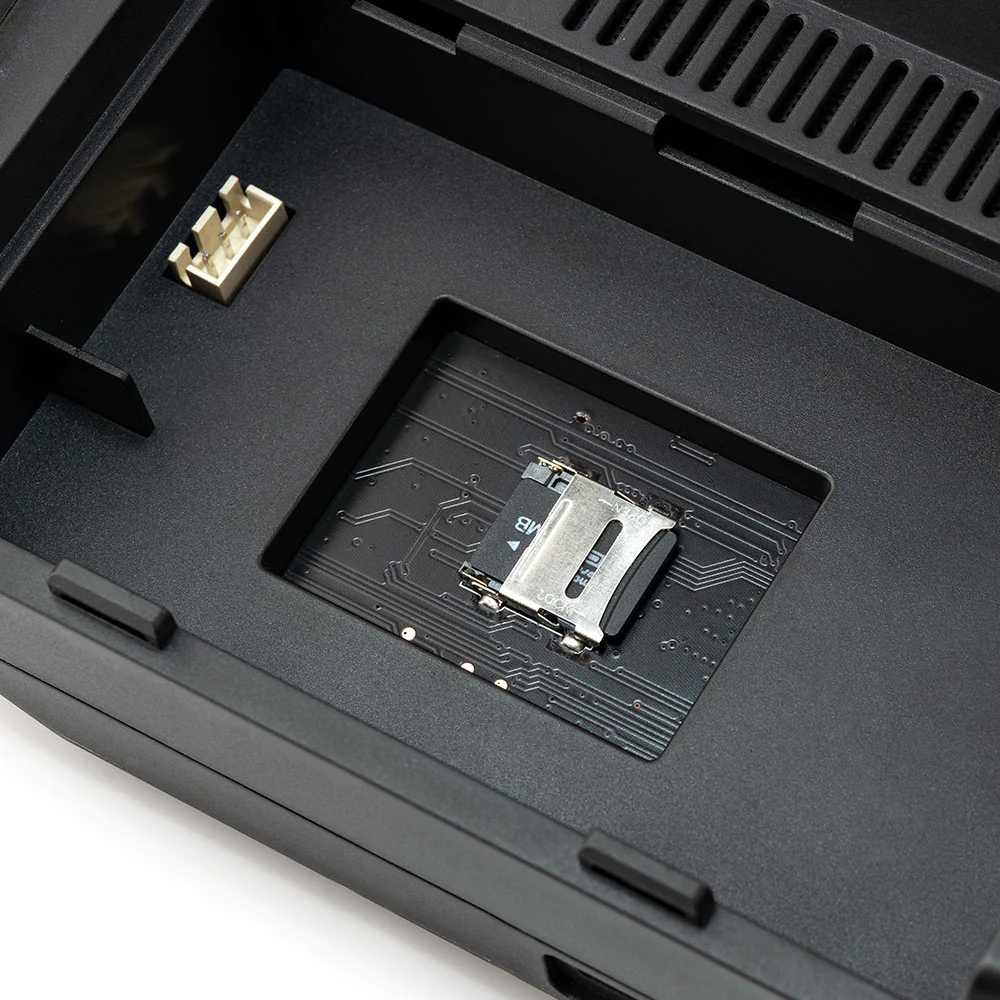

• Redesigned SD card slot with pre-loaded SD card included
• External module power slots in battery cover
• RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move

Specifications

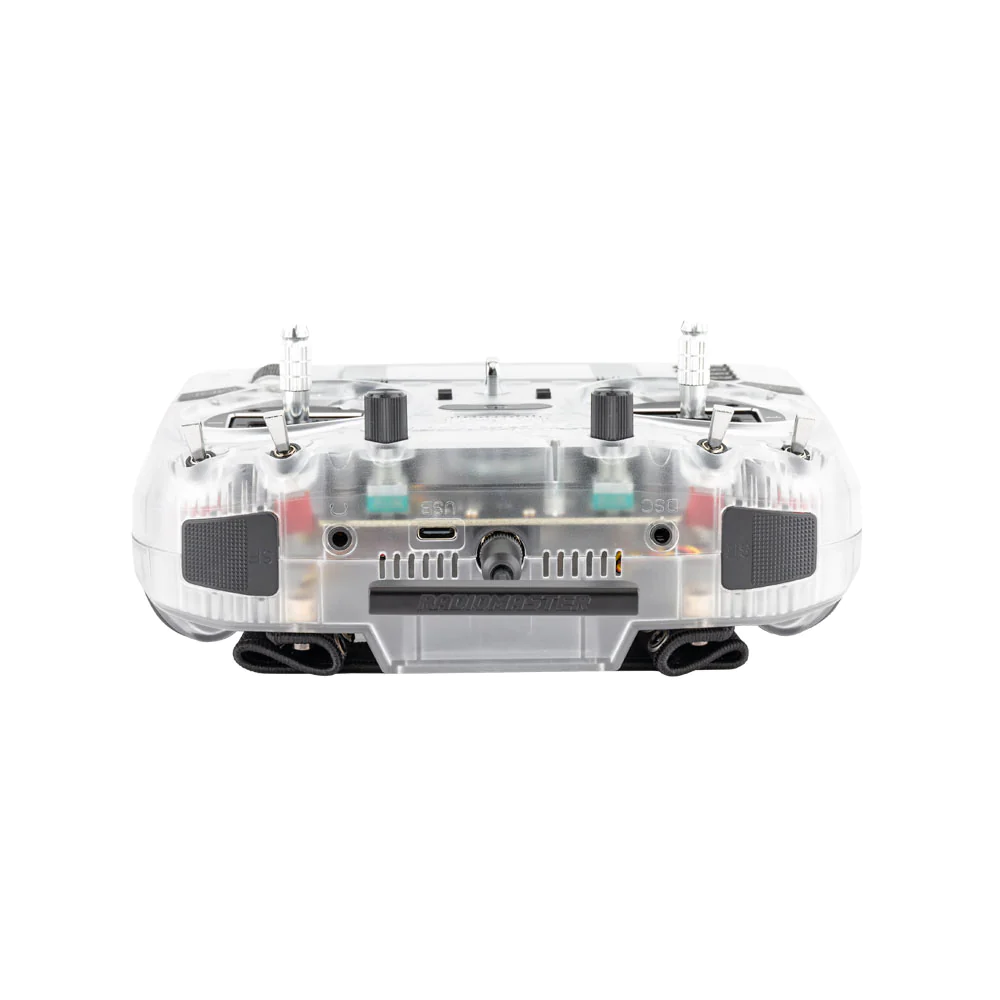

• Item: BOXER Radio Transparent Version

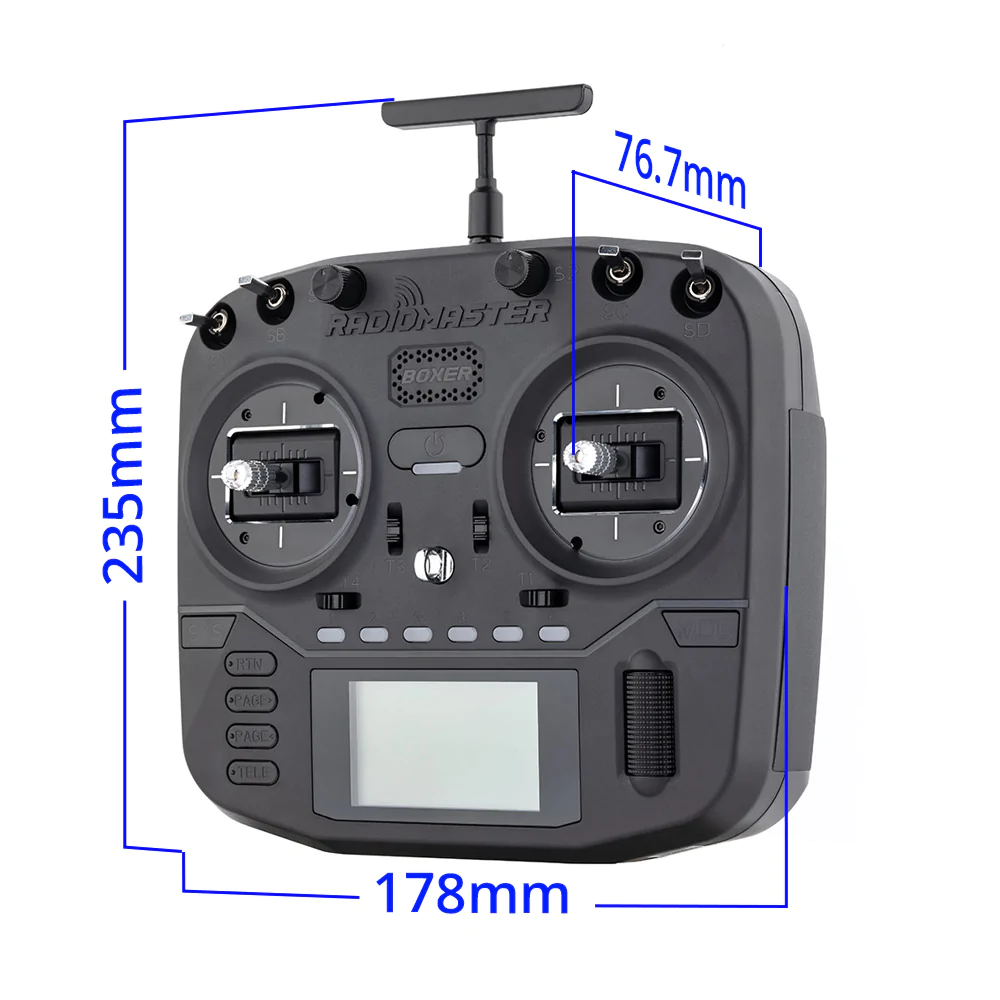

• Size: 235*178*77mm
• Weight: 532.5g
• Frequency: 2.400GHz-2.480GHz
• Internal RF: ELRS 2.4GHz
• Supported protocols: Module dependent
• Transmitting Power: ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)
• Cooling fan: Built in (ELRS version)
• Voltage Range: 6.6-8.4V DC
• Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
• Channels: Max 16 channels (Receiver dependent)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
• Display: 128*64 Monochrome LCD display
• Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
• External module: JR / FrSKY / Crossfire compatible
• Upgrade Method: USB / SD card & EdgeTX Companion PC software
• BONUS: White Gimbal LED set included but not installed
• BONUS: Radiomaster neck strap

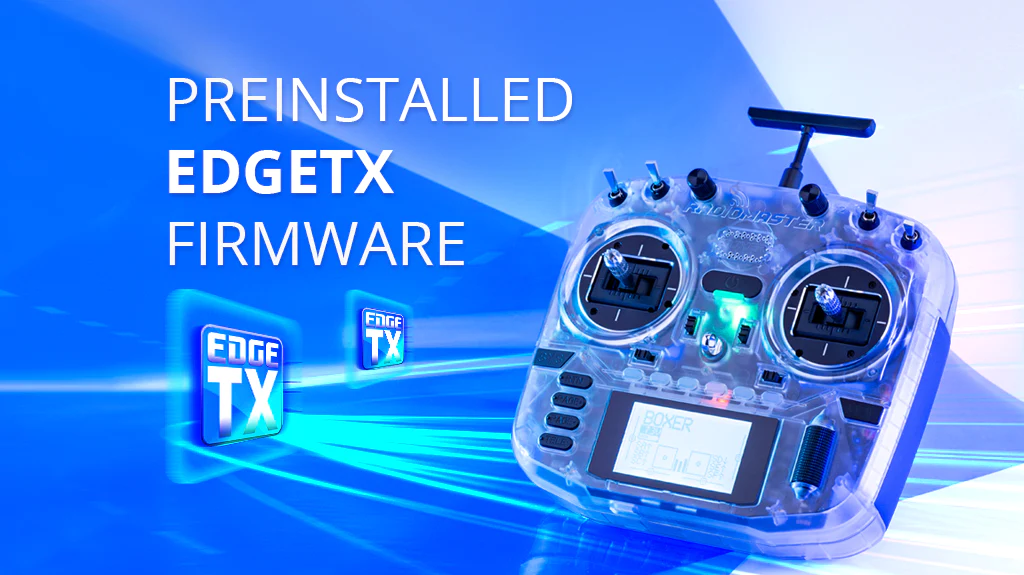

EdgeTX Operating System and ExpressLRS RF system pre-installed

Preinstalled with EdgeTX and ExpressLRS, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.

Associated Products

• Boxer Radio Controller
• 2S 7.4V 6200mAh Lipo Battery
• AG01 CNC Hall Gimbals New Colors

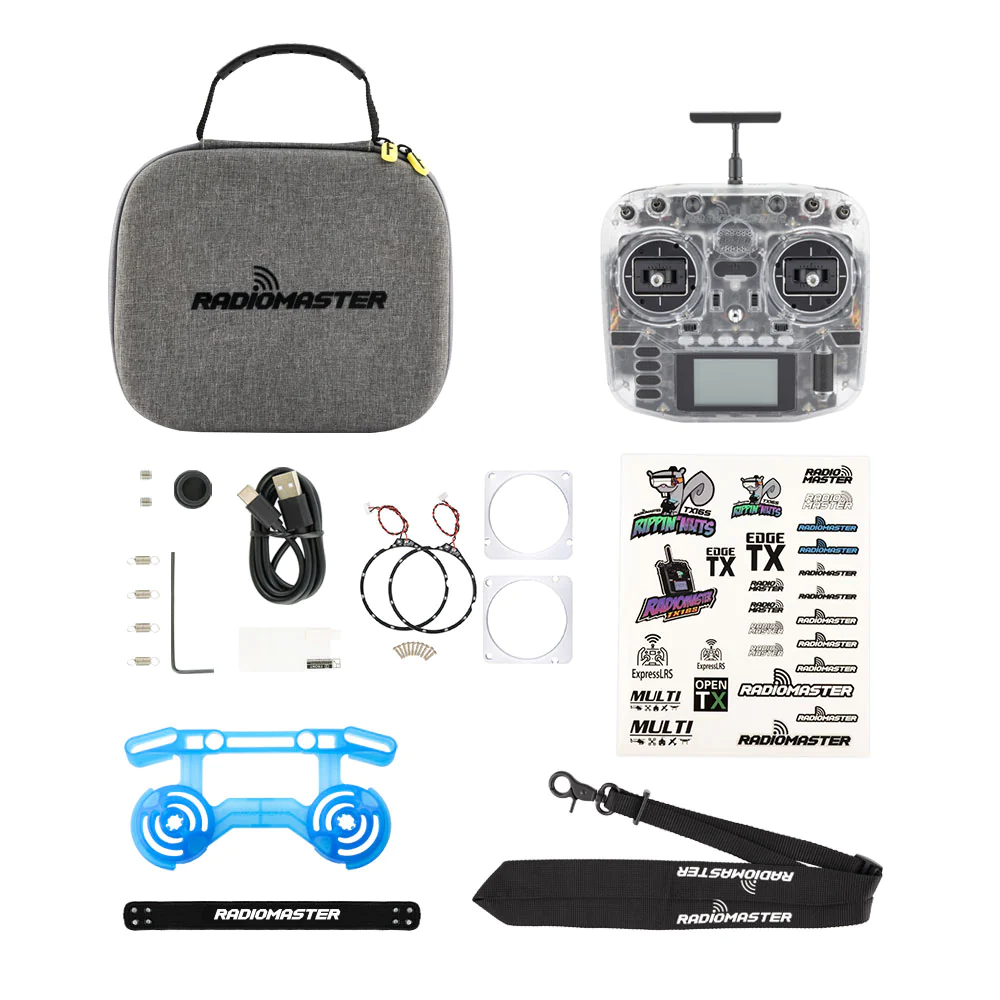

Package Including

• 1 * BOXER Radio Transparent Version

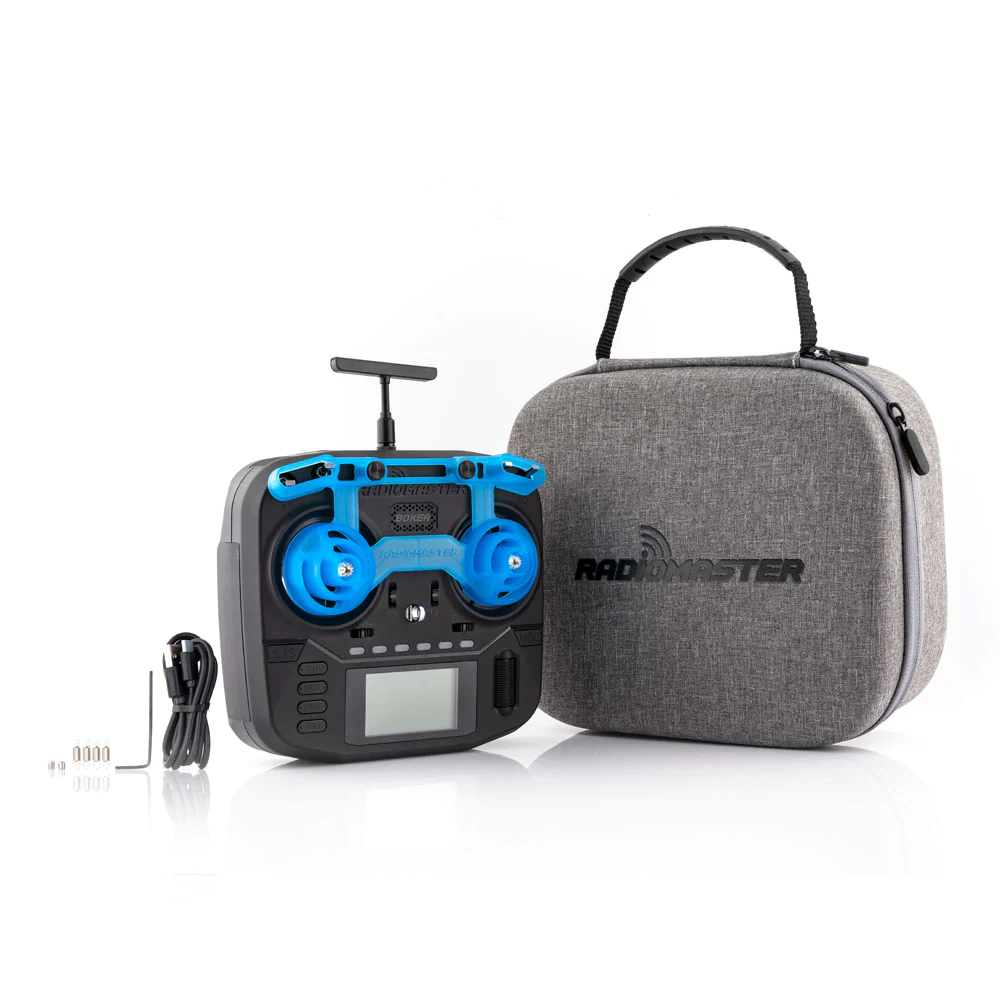

• 1 * Signature Carry Case
• 1 * T Antenna
• 1 * USB-C Cable
• 1 * Gimbal Protector
• 1 * 1.5mm Allen Key
• 2 * M4*4 Screws
• 4 * Low Tension Springs
• 1 * Stickers
• 1 * Manual
• 1 * White Gimbal LED set (ready to install)
• 1 * 18650 Battery tray (Batteries not included)
• 1 * RadioMaster Neck Strap for Transmitter
