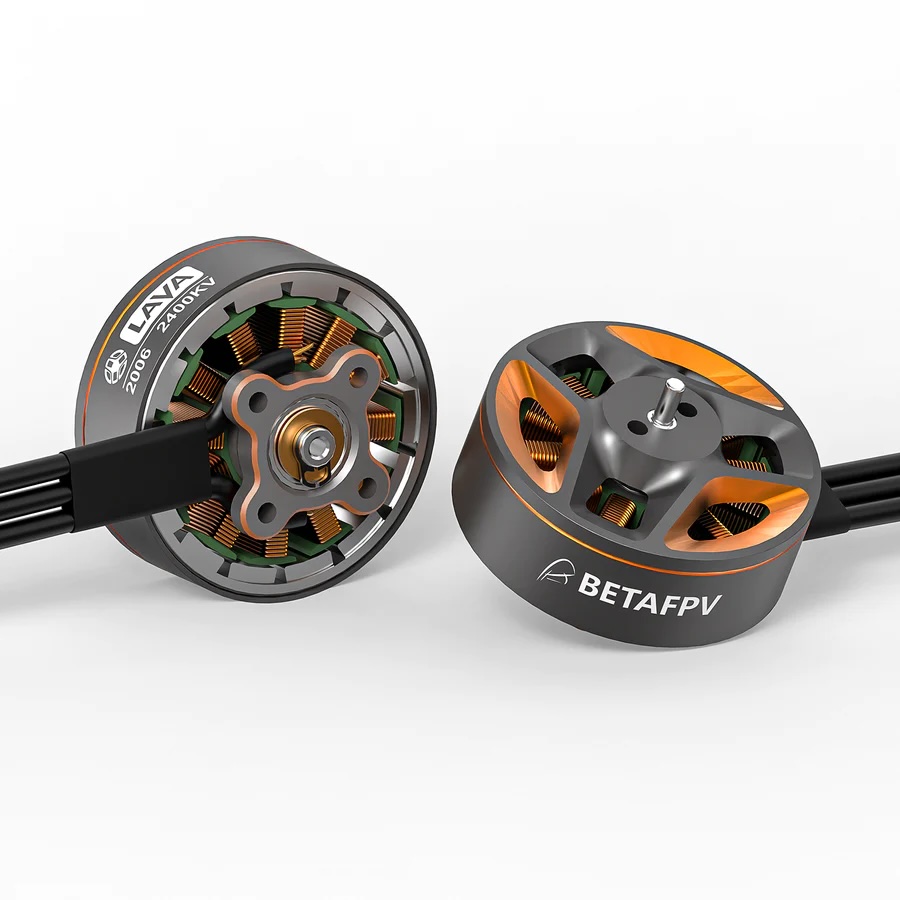

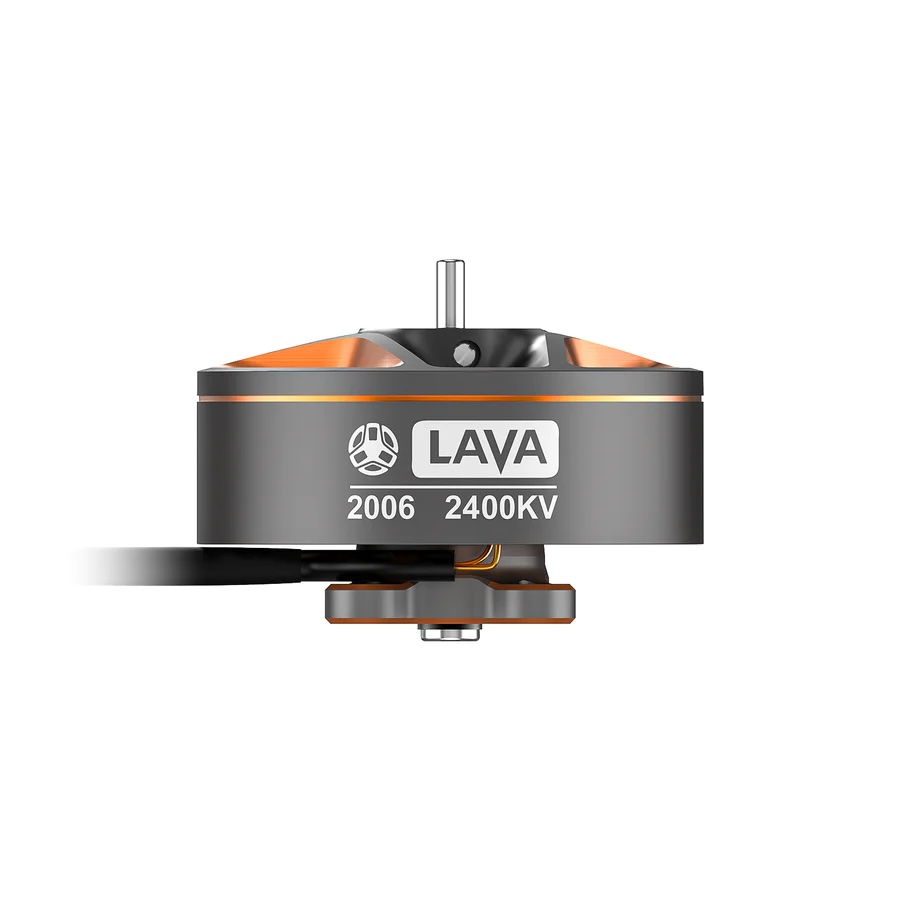

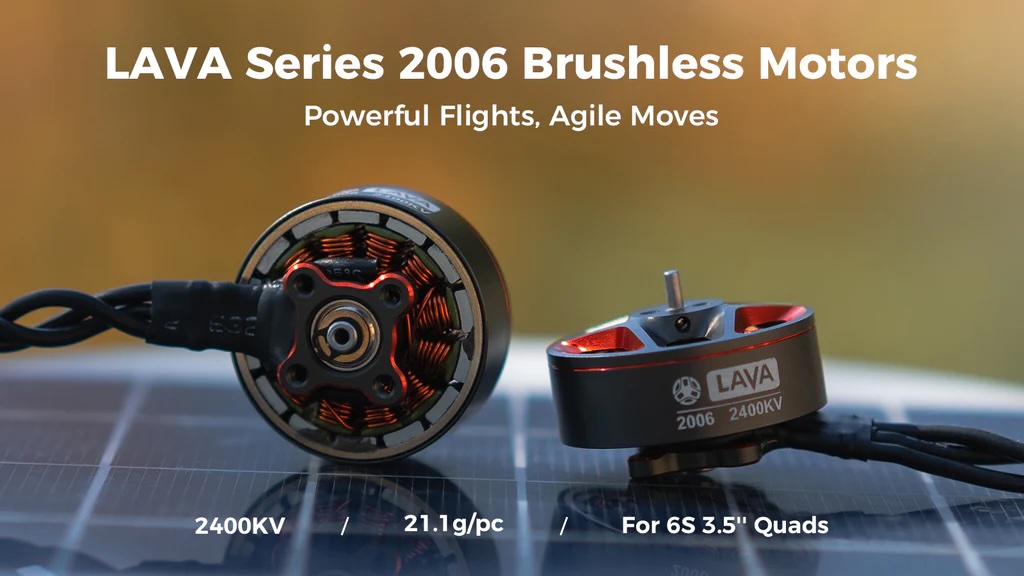

LAVA Series 2006 Brushless Motors is designed for the 6S 3.5'' quads, with high agility and acceleration. Combined with GemFan D90S 3-Blade Propellers (1.5mm Shaft)and the F722 35A AIO V2 FC, it could offer pilots flexible control. Easily meet competitively challenging drone competitions and professionally shot film creation needs, bringing you a superb flight experience and high-quality image output, leading the 6S 3.5'' quads to a smoother and more stable flight level.



Bullet Point

  • Specifically designed for 6S 3.5'' quads, this motor offers high agility and acceleration and features a high-performance 2400KV motor. Pilots enjoy flexible control and get more room for additional payload capacity.
  • These high torque motors feature GemFan D90S 3-Blade Propellers (1.5mm Shaft) to minimize prop wash oscillation and deliver lightning-fast responses, resulting in heightened thrust and power.
  • Perfectly matched with the F722 35A AIO V2 Flight Controller, this motor will bring pilots a powerful flight footage shooting experience with a 6S battery.

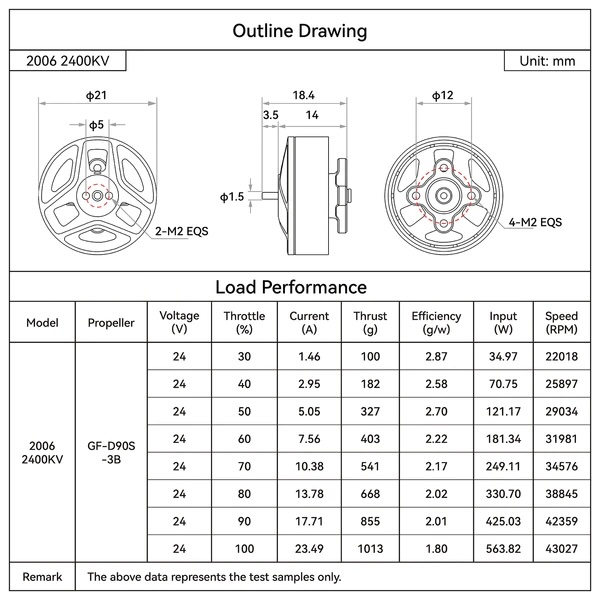

Specification

  • Items: LAVA Series 2006 Brushless Motors
  • Motor KV: 2400KV
  • Maximum Power: 563.82W
  • Maximum Current: 23.49A
  • Color: Gray mixed orange

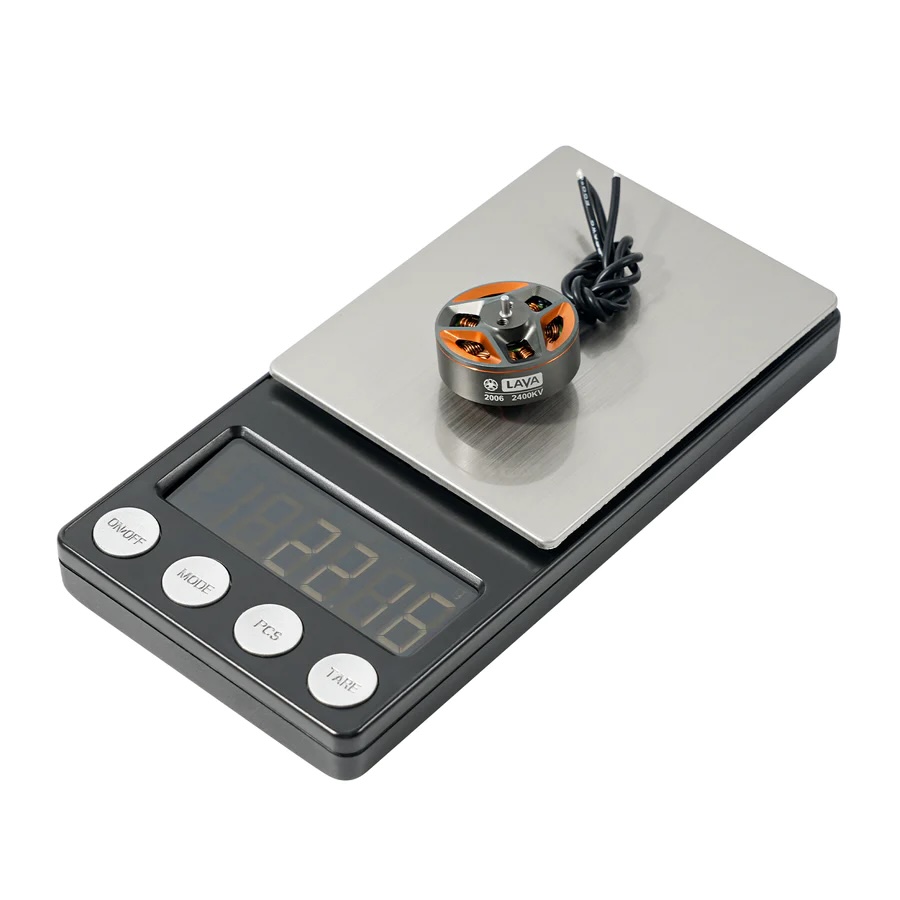

  • Weight: 22.2g
  • Shaft Diameter: ø1.5mm
  • Shaft Length: 3.5mm
  • Wire Specification: 22AWG
  • Wire Length: 100mm
  • Motor Mounting Hole Size: 4*M2 Ø12mm
  • Propeller Mounting Hole Size: 2*M2 Ø5mm




Recommended Parts

  • FC: F722 35A AIO V2 FC
  • Props: GemFan D90S 3-Blade Propellers(1.5mm Shaft)
  • Battery: LAVA Series 6S 1100mAh LiPo Battery, 6S 1050mAh~1400mAh Battery
  • Quadcopter: Pavo35

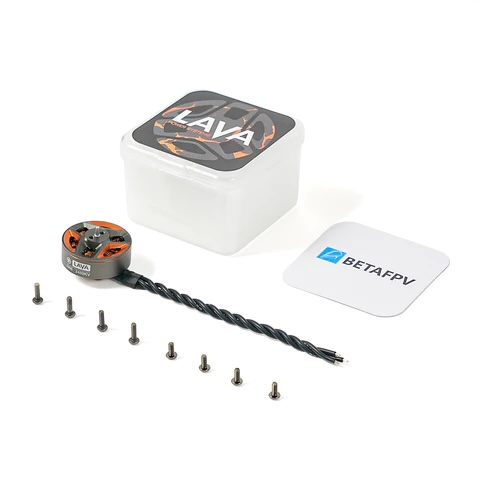

Package

  • 1 * LAVA Series 2006 Brushless Motors
  • 4 * Hex Flat Head Screw M2*5
  • 4 * Hex Flat Head Screw M2*7
